Series 90 Capstan Hoists-Options & Components 1K-lb. rating

All-Purpose Bracket for 1,000-lb.

Model# Weight, each
C3081335 26.5 lb. (12 kg.)

Series 90 hoists – Includes 2 Chain Clamps for poles, angles, beams. We recommend the Universal Bracket below for Gasoline hoist.

Bolt-Down Bracket for 1,000-lb.

Model# Weight, each
E3081321P 9 lb. (4.09 kg.)

Series 90 hoists* – Same as above, except does not include Chain Clamps

Capstan Drum for 1,000-lb.

Model# Weight, each
E3081327P 7 lb. (3.18 kg.)

Series 90 hoists – Replacement, does not include mounting bolt or washer

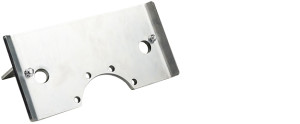

Universal Bracket recommended for Gasoline 1,000-lb. hoist.

Model# Weight, each
C3080925 13 lb. (5.9 kg.)

h-a-universal-bracket
Also fits other 1,000-lb. Series 90 and earlier 750-lb. Chance hoists. Bolts down or uses two C4170346 Chain Clamps below for mounting on poles, angles, beams.

Chain Clamp for Universal Bracket only

Model# Weight, each
C4170346 7 1/8 lb. (3.2 kg.)

One per Cat. No.; two required for C3080925 Bracket

Chain Clamp for Series 90 hoists

Model# Weight, each
E3081334P 6 lb. (2.7 kg.)

One per Cat. No.; for All-Purpose or Bolt-Down Brackets

Rope Lock Device for Series 90 hoists

Model# Weight, each
C3080856 2 lb. (0.9 kg.)

Includes mounting bolts and washers

Foot Controls for Series 90 hoists

for 12-Volt DC drive

Model# Weight, each
C4176145 3 1/2 lb. (1.59 kg.)

for 115- and 230-Volt AC drive

Model# Weight, each
C4170337 4 lb. (1.81 kg.)

For Hydraulic drive

Model# Weight, each
C3080685 24 lb. (10.9 kg.)

C308-1335, C308-0925, C417-0346, C308-0856, C417-6145, C417-0337, C308-0685
